Cable to Bar Connections (CB)
Horizontal Cable Tap to Horizontal Bar – T Joint ( Weld Type – CB4 )
When it comes to reliable electrical connections, especially in industrial and commercial settings, ensuring the highest quality and durability is crucial. This is where cable-to-bar connections come into play. Among the various types of connections, the Horizontal Cable Tap to Horizontal Bar – T Joint (Weld Type – CB4) stands out due to its effectiveness and reliability. Amiable Impex, a leading manufacturer, supplier, and exporter, specializes in this type of connection, utilizing the exothermic welding process to achieve unparalleled electrical continuity and mechanical strength.
Understanding Cable to Bar Connections (CB)
Cable-to-bar connections are critical in electrical grounding and bonding systems. These connections involve securely attaching a cable, typically a copper conductor, to a busbar or grounding bar, which is usually made of copper or aluminum. The primary purpose of these connections is to establish a continuous and low-resistance path for electrical currents, ensuring safety and efficiency in electrical installations.
Cable-to-bar connections are widely used in various industries, including telecommunications, power distribution, and data centers. They are essential for preventing electrical faults, minimizing downtime, and protecting sensitive equipment from electrical surges and lightning strikes. A well-executed cable-to-bar connection ensures long-term reliability and minimizes the risk of overheating and corrosion, which can lead to costly repairs and potential safety hazards.
The Role of Exothermic Welding in Cable to Bar Connections
Exothermic welding, also known as thermite welding, is a highly efficient and reliable method used to join two or more conductors. This process involves a chemical reaction between a metal oxide and aluminum powder, producing molten metal that flows into a mold, creating a solid and permanent connection upon cooling. Unlike mechanical connections, exothermic welds provide a molecular bond that is highly resistant to corrosion, vibration, and electrical surges.
For cable-to-bar connections, exothermic welding offers several advantages:
- Permanent Bond: The exothermic weld forms a molecular bond between the cable and the bar, resulting in a permanent connection that does not loosen or degrade over time.
- High Conductivity: The weld provides excellent electrical conductivity, ensuring minimal resistance and optimal performance of the grounding system.
- Corrosion Resistance: Exothermic welds are highly resistant to corrosion, making them ideal for outdoor and harsh environments where exposure to moisture and chemicals is a concern.
- Maintenance-Free: Once the weld is made, it requires no maintenance, reducing long-term operational costs.

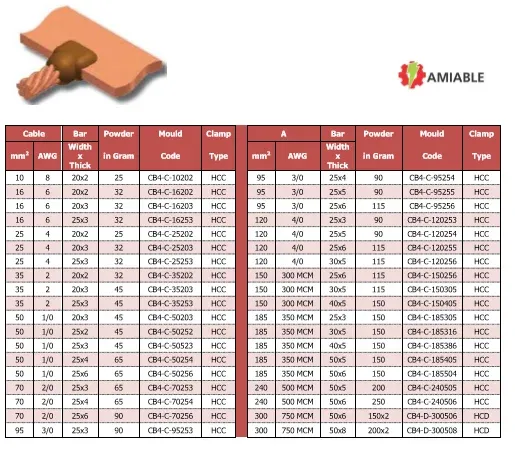

Horizontal Cable Tap to Horizontal Bar – T Joint (Weld Type – CB4)
The Horizontal Cable Tap to Horizontal Bar – T Joint (Weld Type – CB4) is a specific configuration used in electrical grounding systems. This type of joint is designed for connecting a horizontal cable to a horizontal bar in a T-shaped configuration. The weld type CB4 indicates the use of a specific exothermic welding mold and process to achieve this connection.
Key Features of CB4 Weld Type
- Efficient Current Distribution: The T Joint configuration allows for efficient current distribution across the connected conductors, ensuring stable and reliable performance in the grounding system.
- Enhanced Mechanical Strength: The exothermic welding process used in CB4 welds provides superior mechanical strength, ensuring that the connection can withstand mechanical stress and environmental factors.
- Compact and Space-Saving Design: The horizontal orientation of the cable and bar, coupled with the T Joint configuration, offers a compact solution that saves space in electrical enclosures and grounding systems.
- Easy Installation: With the right tools and training, installing a CB4 weld type connection is straightforward, making it a preferred choice for electrical contractors and engineers.
Benefits of Using CB4 Weld Type for Cable to Bar Connections
Using the CB4 weld type for horizontal cable tap to horizontal bar connections offers numerous benefits:
- Reliable Grounding: The CB4 weld type ensures a secure and low-resistance connection, which is crucial for effective grounding and bonding in electrical systems.
- Long-Term Durability: Thanks to the robust nature of exothermic welds, CB4 connections provide long-term durability, reducing the need for frequent inspections and maintenance.
- Versatility: This weld type is versatile and can be used in various applications, including grounding grids, power distribution systems, and lightning protection systems.
- Cost-Effective: While the initial setup may require specific tools and materials, the long-term benefits of reduced maintenance and enhanced reliability make CB4 weld type connections a cost-effective choice for many projects.
Amiable Impex: Your Trusted Partner for Exothermic Welding Solutions
At Amiable Impex, we understand the importance of reliable electrical connections in today’s demanding industrial environments. As a leading manufacturer, supplier, and exporter of exothermic welding materials and equipment, we are committed to providing high-quality solutions that meet the highest standards of safety and performance.
Our CB4 weld type for horizontal cable tap to horizontal bar connections is designed to deliver outstanding results in various applications. We use premium-grade materials and adhere to strict quality control processes to ensure that every weld meets your specifications and expectations.
Whether you are working on a large-scale infrastructure project or a small electrical installation, Amiable Impex has the expertise and products to support your needs. Our team of skilled professionals is always available to provide technical assistance, training, and support to ensure the success of your project.
