What is Exothermic Welding for Earthing Systems?
Exothermic welding, also known as thermite welding, is a highly effective method for connecting electrical conductors in earthing systems. It uses a chemical reaction to produce intense heat, which allows metal conductors to be welded together in a permanent and highly durable bond. Unlike conventional welding methods, exothermic welding does not require external sources of heat or electricity, making it ideal for situations where reliability and longevity are critical.
Exothermic welding is widely used in the construction, electrical, and telecommunications industries to ensure that grounding systems are safe and efficient. These welded joints create low-resistance connections that are essential for earthing systems in power stations, industrial plants, and telecommunication towers, where failure is not an option.
At Amiable Impex, we specialize in manufacturing, supplying, and exporting high-quality exothermic welding products. Our solutions are trusted by industries around the world for their reliability and long-lasting performance. In this comprehensive guide, we will explain the benefits, applications, process, and more about exothermic welding for earthing systems.

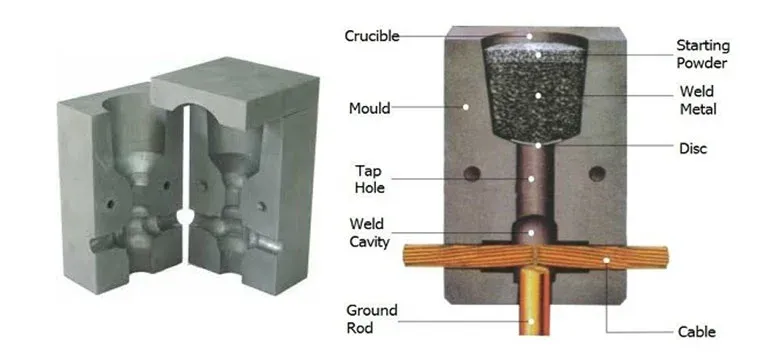

How Exothermic Welding Works in Earthing Systems
Exothermic welding is a process where a mixture of metal oxide and powder is ignited to produce a chemical reaction that generates extreme heat. This heat causes the metal to melt, forming a permanent bond between two conductors. The process is efficient, cost-effective, and provides high-quality electrical connections, ensuring safe and effective earthing.
The Chemical Reaction:
The core of the exothermic welding process is the thermite reaction. In this process, a metal oxide (usually copper oxide) reacts with aluminum powder. The reaction generates temperatures exceeding 2500°C (4500°F), which is enough to melt copper and other metals.
The reaction proceeds as follows:
Copper(II) oxide+Aluminum powder→Copper+Aluminum oxide\text{Copper(II) oxide} + \text{Aluminum powder} \rightarrow \text{Copper} + \text{Aluminum oxide}Copper(II) oxide+Aluminum powder→Copper+Aluminum oxide
The heat produced is sufficient to melt the copper conductors and allows them to fuse with minimal resistance. The aluminum oxide produced is then removed, leaving behind a clean, solid, and electrically conductive joint.
Steps in the Process:
- Preparation: The conductors to be welded are cleaned, ensuring no contaminants are present.
- Mold Placement: A mold is placed around the conductors, and the welding powder is introduced into the mold.
- Ignition: The powder is ignited, and the reaction generates the necessary heat to melt the copper and bond the conductors.
- Cooling and Inspection: Once the reaction completes, the weld is allowed to cool and solidify. The joint is inspected for quality and reliability.
This method is highly effective for grounding systems, as the welded joints offer low resistance, preventing overheating or electrical faults that could occur in other types of connections.
Benefits of Exothermic Welding in Grounding Systems
Exothermic welding is widely regarded as the best method for creating electrical bonds in earthing systems, and it offers several advantages over traditional methods.
Durability
The joints created by exothermic welding are incredibly strong and durable. The high heat produced during the welding process fuses the metal at a molecular level, creating a bond that is resistant to corrosion, wear, and tear. These joints are designed to last for decades, even in harsh environmental conditions.
Low Resistance:
Exothermic welding creates joints with low electrical resistance. This is essential for grounding systems, as high-resistance joints can lead to overheating, electrical faults, and potential fire hazards. With exothermic welding, the joint conducts electricity efficiently and safely.
No External Power Source Required:
Unlike traditional welding methods that require external power sources, exothermic welding uses a self-contained chemical reaction to generate heat. This makes it ideal for use in remote locations or places where electrical power may not be readily available.
Resistance to Corrosion:
The exothermic welding process produces a solid copper bond that is resistant to corrosion. This is particularly important in earthing systems, which are often exposed to moisture and other corrosive elements.
Speed and Efficiency:
The exothermic welding process is relatively quick and easy, allowing for fast installation in grounding systems. This can significantly reduce project timelines and labor costs, making it a cost-effective solution for companies.
Applications of Exothermic Welding in Various Industries
Exothermic welding has a wide range of applications in various industries, particularly where earthing and grounding systems are essential. Below are some of the most common applications.
Electrical Power Stations:
In power plants, ensuring a safe and reliable earthing system is crucial for both the equipment and personnel. Exothermic welding is used to create secure connections between grounding rods, cables, and electrical panels, ensuring that any excess electricity is safely conducted into the ground.
Telecommunications:
Telecommunication towers require robust grounding systems to protect sensitive equipment from lightning strikes and electrical faults. Exothermic welding provides the necessary strength and reliability for these systems, preventing costly downtime and ensuring the safety of equipment.
Industrial Plants:
In manufacturing and industrial plants, electrical equipment is constantly exposed to high voltage and other dangerous conditions. Exothermic welding creates durable, long-lasting connections that can withstand these conditions and protect both personnel and equipment.
Construction and Infrastructure Projects:
Grounding systems are also essential in large-scale infrastructure projects like bridges, tunnels, and high-rise buildings. Exothermic welding is used to ensure these projects meet safety standards and regulations, providing a secure connection for electrical systems.
Renewable Energy Systems:
With the rise of renewable energy sources like solar and wind power, the need for safe and efficient grounding systems is more important than ever. Exothermic welding plays a crucial role in ensuring the safety and reliability of renewable energy infrastructure.
Choosing the Right Exothermic Welding Materials
Choosing the right materials for exothermic welding is crucial for ensuring the quality and reliability of the bond. Various factors, such as conductivity, corrosion resistance, and environmental conditions, must be considered when selecting the appropriate materials.
Common Materials Used in Exothermic Welding:
- Copper: Copper is the most commonly used material in exothermic welding due to its excellent electrical conductivity. Copper bonds are highly reliable and provide low-resistance connections that are perfect for earthing systems.
- Copper Alloys: Copper alloys, such as copper-tin or copper-aluminum, are also used in exothermic welding for certain applications. These materials offer enhanced strength and corrosion resistance, making them ideal for harsh environments.
- Aluminum: Aluminum is sometimes used in exothermic welding, especially in cases where the grounding system is exposed to extremely high temperatures or where weight reduction is necessary.
- Steel: For certain high-resistance applications, steel can be used in conjunction with copper or aluminum. Steel is often selected for its strength and ability to withstand mechanical stress.
Exothermic Welding vs. Traditional Methods
While exothermic welding is a highly effective method for creating electrical bonds, it’s important to compare it with traditional methods to understand its advantages and disadvantages.
Welding vs. Mechanical Connections:
Traditional methods of earthing often involve mechanical connections, such as clamps or bolted joints. These connections can be prone to loosening over time, increasing the risk of electrical faults. Exothermic welding, on the other hand, creates a permanent bond that doesn’t require maintenance.
Speed and Efficiency:
Traditional methods may involve more complex procedures, such as welding with external power sources or creating multiple connections using hand tools. Exothermic welding is a quick and efficient process, reducing labor costs and project timelines.
Long-Term Durability:
Mechanical connections can corrode over time, leading to increased resistance and the potential for failure. Exothermic welding provides a long-lasting bond that is resistant to corrosion and wear, ensuring the earthing system remains safe and effective for decades.
Cost:
While exothermic welding may have higher initial setup costs, the long-term savings on maintenance and downtime make it a more cost-effective solution in the long run.
Step-by-Step Guide to Performing Exothermic Welding
Performing exothermic welding requires precision, the right materials, and a clear understanding of the process. Below is a step-by-step guide on how to carry out exothermic welding for earthing systems.
Preparation of Conductors
Clean the surfaces of the conductors to remove any contaminants such as dirt, oil, or oxidation. This ensures a clean bond between the materials and improves the quality of the weld.
Mold Placement
Place the mold around the conductors, ensuring that the conductors are properly aligned. The mold should be secured in place, and the correct amount of exothermic welding powder should be added.
Ignition
Ignite the welding powder using a spark or ignition tool. The chemical reaction will begin, generating the required heat to melt the copper or aluminum conductors.
Welding
As the reaction progresses, the metal will melt and bond together. Allow the reaction to complete, ensuring that the joint is solidified.
Cooling and Inspection
Once the weld is complete, allow the joint to cool and solidify naturally. After cooling, carefully remove the mold and inspect the weld for any imperfections or inconsistencies. A high-quality weld should have a smooth surface, with no cracks or voids. You can also conduct electrical resistance testing to ensure the weld provides a low-resistance connection, which is critical for effective earthing.
Key Considerations for Proper Exothermic Welding Installation
While exothermic welding is a reliable and efficient process, several key considerations must be kept in mind to ensure successful installation and long-lasting results.
Safety First
Exothermic welding generates extremely high temperatures during the chemical reaction, which can pose a risk of burns or fire if safety precautions are not followed. Ensure that all personnel involved in the process are wearing appropriate protective gear, including heat-resistant gloves, face shields, and flame-retardant clothing. Additionally, work in well-ventilated areas to avoid inhalation of smoke or fumes.
Proper Training
Exothermic welding requires a certain level of technical knowledge and skill. It is essential that the personnel performing the welding are adequately trained and familiar with the tools, materials, and safety protocols. Training will also help improve the quality of the welds and reduce errors.
Material Selection
Choosing the right materials for the welding process is critical for the success of the operation. As previously mentioned, copper is the most commonly used material due to its excellent conductivity, but depending on the environmental conditions, you may need to select alloys or other metals to ensure optimal performance.
Correct Mold Placement
Proper alignment of the conductors in the mold is essential for ensuring a successful weld. The conductors should be tightly held in place, with no gaps between them, to ensure that the molten metal flows evenly and creates a strong, reliable bond.
Environmental Conditions
Exothermic welding works best in controlled environments, but sometimes it needs to be done in the field or under less-than-ideal conditions. Extreme temperatures, humidity, or exposure to moisture can affect the quality of the weld. Ensure that the weather conditions are suitable, or take steps to mitigate the impact of the environment.
Post-Weld Inspection
After the welding process, perform a thorough inspection to ensure that the joint has been welded correctly and meets all electrical and mechanical standards. Visual inspection and testing for electrical continuity should be part of the post-weld process.
Safety Standards for Exothermic Welding Earthing
Exothermic welding is subject to strict safety regulations and standards to ensure that the process is carried out without endangering workers or the integrity of the earthing system. Adhering to these standards is critical for both the long-term success of the project and for ensuring the safety of personnel.
International Standards
Exothermic welding processes for earthing systems are typically governed by standards set by international organizations such as the International Electrotechnical Commission (IEC), the American National Standards Institute (ANSI), and the National Electrical Code (NEC). These standards specify the required performance, testing, and safety measures to ensure that the exothermic welds meet industry expectations.
Health and Safety Regulations
It is essential to follow all local safety regulations when performing exothermic welding. These regulations cover not only the physical safety of the workers but also the proper disposal of materials used in the welding process. For example, OSHA (Occupational Safety and Health Administration) guidelines must be followed to ensure that workers have proper training and access to protective equipment.
Fire and Explosion Risks
Due to the high heat involved in the process, there is a risk of fire or explosion if safety measures are not followed. For example, it is essential to ensure that all combustible materials are removed from the work area before beginning the welding process. Additionally, the mold must be positioned securely to prevent molten material from spilling and causing a fire hazard.
Common Mistakes in Exothermic Welding and How to Avoid Them
Although exothermic welding is relatively straightforward, mistakes can still occur. Here are some of the most common mistakes and how to avoid them:
Incorrect Mold Placement
One of the most common mistakes is improper placement of the conductors in the mold. Misalignment can lead to poor welds, which might not create a reliable electrical connection. Ensure that the conductors are aligned correctly and that the mold is securely in place before initiating the welding process.
Inadequate Cleaning of Conductors
If the conductors are not properly cleaned before welding, contaminants like dirt, oil, or rust can interfere with the welding process. This can lead to weak or unreliable bonds. Always clean the conductors thoroughly using appropriate cleaning solutions and ensure that no residue is left on the surfaces.
Inconsistent Powder Mix
The quality of the exothermic welding powder can significantly affect the weld's strength and longevity. Using an inconsistent or low-quality powder can lead to weak bonds or an incomplete reaction. Always use high-quality, approved powder mixtures and ensure they are stored and handled correctly.
Ignition Issues
Sometimes the ignition process can fail, either due to faulty ignition equipment or improper powder handling. Always ensure that the ignition system is in good working order and that the powder is evenly distributed in the mold.
Neglecting Post-Weld Inspection
It’s tempting to move on to the next part of the project without performing a proper inspection of the weld. However, skipping this crucial step can lead to undetected issues that might compromise the integrity of the grounding system. Always perform a thorough inspection and resistance testing after each weld.
FAQ's
Exothermic welding provides several benefits, including low-resistance electrical connections, durability, corrosion resistance, and ease of installation. It is an efficient method for creating permanent and safe grounding systems, ensuring long-term reliability.
Yes, exothermic welding can be used for various grounding applications, including power plants, telecommunications towers, industrial plants, and renewable energy systems. However, the choice of materials and welding techniques should be based on the specific requirements of each project.
The welding process itself is relatively fast and can take only a few minutes to complete, depending on the size and complexity of the joint. However, preparation and inspection time should also be factored into the overall timeline.
Yes, exothermic welding is ideal for field applications since it doesn’t require external power sources. This makes it an excellent choice for remote locations or projects where electricity is not readily available.
After the welding process, inspect the joint for any visible cracks or imperfections. You should also test the joint for electrical resistance to ensure it provides a low-resistance connection. A successful weld will have a smooth, even surface with no defects.
Exothermic welding is an essential method for ensuring safe, efficient, and long-lasting earthing systems. At Amiable Impex, we specialize in providing high-quality exothermic welding products and services that meet the needs of various industries, from electrical power stations to telecommunications and industrial plants.
Our commitment to quality, safety, and innovation ensures that our clients receive the most reliable grounding solutions available. Whether you are looking for products for a large-scale infrastructure project or need assistance with installation, Amiable Impex is here to support you every step of the way.
For more information or to inquire about our products, feel free to contact us today.
